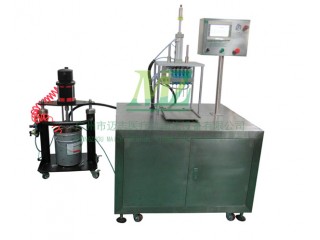

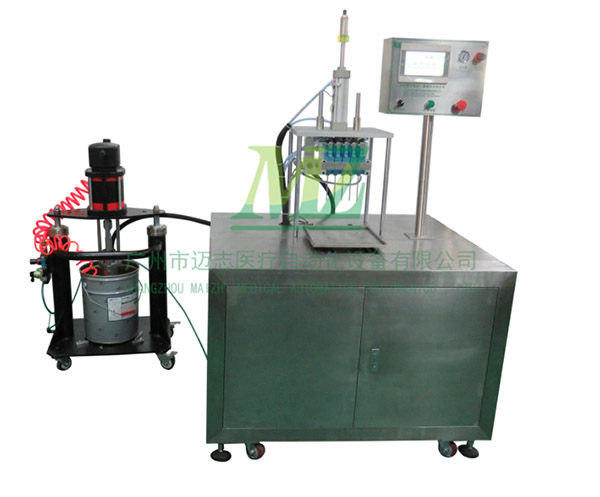

MZJJ05真空采血管5通道自動加膠機

設備產能

Equipment capacity

3000-4000支/小時（受膠體黏度和加量影響）

3000-4000 pcs/h (affected by gel viscosity and filling volume)

整機功率

Overall power

1.5kw   220v 50HZ

通道數量

Channel number

5通道、10通道、20通道等

5 channels, 10 channels, 20 channels, etc.

加膠量

Gel filling volume

0.1-1.5cc

加膠精度

Gel filling accuracy

±2%-5%

耗氣量

Gas consumption

≤0.2m³/min，氣源壓力：0.5Mpa≤p≤0.8Mpa

≤0.2m³/min, air source pressure: 0.5Mpa≤p≤0.8Mpa

試管規格

Test tube specification

微量管Ø13管（13*75  13*100通用）Ø16管（夾具不通用）

Ø13 microhemopipet (universal for 13*75  13*100), Ø16 (non-universal for fixtures)

整機外形尺寸

Overall boundary dimension

1800mm*900mm*1850mm

整機重量

Overall weight

約300kg

Approx. 300kg
